RUT955 - Wi-Fi 4 (802.11n) - Single-band (2.4 GHz) - Ethernet LAN - 3G - Black - Tabletop router

Mfg. SKU: RUT955V03020

SKU: 1035319

General
WAN connection type
RJ-45
Wi-Fi band
Single-band (2.4 GHz)
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
Ethernet LAN
Y
Ethernet LAN interface type
Fast Ethernet
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
2G standards
GSM
3G standards
HSPA+,UMTS
3G
Y
4G
Y
4G standard
LTE
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
32 GB
S$ 0.00 S$ 0.00
Availability: On request
Network
Ethernet LAN
Y
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Cabling technology
10/100Base-T(X)
Networking standards
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Auto MDI/MDI-X
Y
Port forwarding
Y
Load balancing system
Y
Dynamic DNS (DDNS)
Y
SSID-based VLAN assignment
Y
VPN tunnels quantity
4
VPN support
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
Wireless LAN features
Wi-Fi band
Single-band (2.4 GHz)
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
Wi-Fi standards
802.11b,802.11g,Wi-Fi 4 (802.11n)
Mobile network
3G
Y
4G
Y
2G standards
GSM
3G standards
HSPA+,UMTS
4G standard
LTE
GSM bands supported
900,1800 MHz
UMTS bands supported
850,900,2100 MHz
4G bands supported
800,900,1800,2100,2600 MHz
Short Message Service (SMS)
Y
Power
Power source type
AC, DC
AC input voltage
100 - 240 V
Output voltage
9 - 30 V
Power consumption (typical)
7 W
Antenna
Antenna type
External
Antennas quantity
5
Detachable antenna(s)
Y
WAN connection
Ethernet WAN
Y
DSL WAN
N
SIM card slot
Y
3G/4G USB modem compatibility
Y
Dual SIM support
Y
WAN connection type
RJ-45
Design
Product type
Tabletop router
Product colour
Black
Housing material
Aluminium, Plastic
Indication light
Y
Features
Built-in processor
Y
Processor frequency
550 MHz
Internal memory
128 MB
Flash memory
16 MB
Mean time between failures (MTBF)
230000 h
Firmware upgradeable
Y
Certification
CE/RED, FCC, R&TTE, EAC, RCM, PTCRB, RoHS, WEEE
Security
Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES-CCMP, HTTPS, SNMP, SSH, TKIP, TLS, TTLS, WEP, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Firewall
Y
DoS attack prevention
Y
Filtering
Y
MAC address filtering
Y
System event log
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
USB port
Y
USB 2.0 ports quantity
1
Memory card slot(s)
Y
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
32 GB
DC-in jack
Y
Packaging data
Cables included
LAN (RJ-45)
AC adapter included
Y
Quick start guide
Y
Management features
Web-based management
Y
Wi-Fi Multimedia (WMM)/(WME)
Y
Quality of Service (QoS) support
Y
Reset button
Y
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
80 mm
Depth
106 mm
Height
46 mm
Weight
265 g
Protocols
Routing protocols
BGP,OSPF,RIP-1,RIP-2
VoIP protocols
H.323, SIP-alg protocol
Supported network protocols
TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT

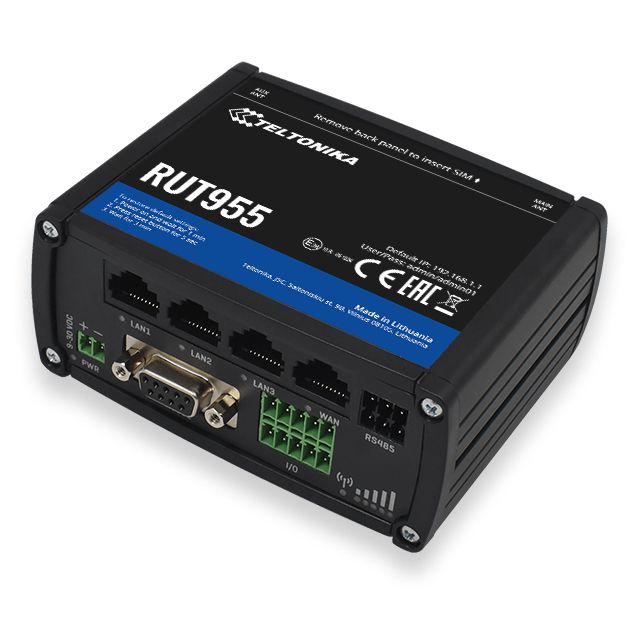

RUT955 is a highly reliable and secure LTE router with I/O, GNSS and RS232/RS485 for professional applications. Router delivers high performance, mission-critical cellular communication and GPS location capabilities. RUT955 is equipped with connectivity redundancy through dual SIM failover. External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.
