NetMetal 5SHP (RB921UAGS-5SHPACD-NM)

Mfg. SKU: RB921UAGS-5SHPACD-NM

SKU: 1040572

EAN: 4250605579449

General
Ethernet LAN data rates
10,100,1000 Mbit/s
Channel bandwidth
80 MHz
Modulation
256-QAM
USB connector type
USB Type-A
Input voltage
8 - 30 V
Power consumption (max)
21 W
Housing material
Aluminum
LED indicators
Status,Signal strength
Chipset
QCA9882-BR4A-R
Processor model
Qualcomm Atheros QCA9557
Processor frequency
720 MHz
S$ 0.00 S$ 0.00
Availability: On request

NetMetal 5SHP

Dual chain 5GHz integrated 802.11ac AP/Backbone/CPE, 2xRPSMA connectors, high TX power, Gigabit Ethernet, waterproof metal enclosure

This NetMetal version is equipped with super high power 1.3W 2x2 dual chain 802.11a/n/ac wireless and two RP-SMA connectors for external antennas

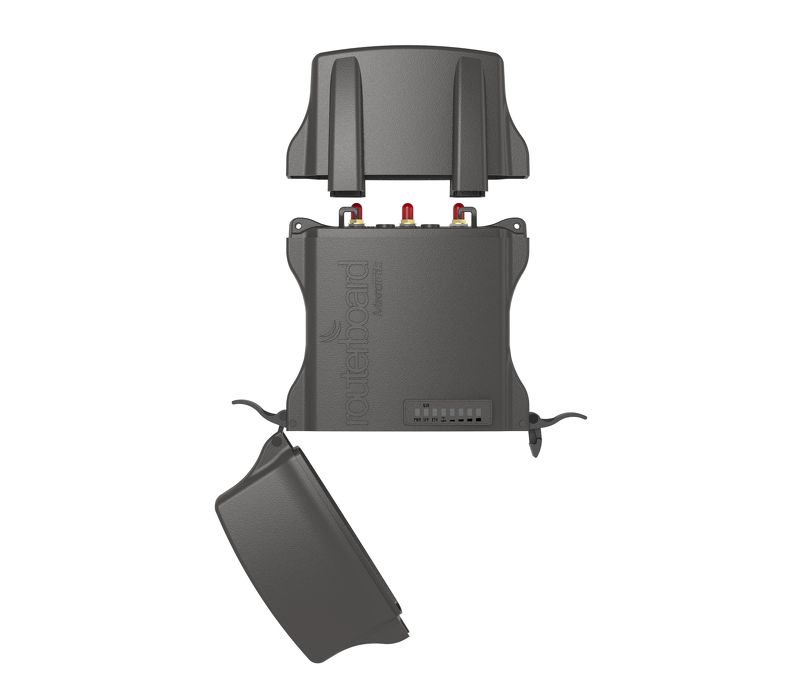

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. The enclosure is sealed to conform with the IP54 standard.

- RB921UAGS-5SHPacT-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB921UAGS-5SHPacT-NM (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

NetMetal 5SHP
NetMetal 5SHP
NetMetal 5SHP
NetMetal 5SHP
Features
5 GHz
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Channel bandwidth
80 MHz
Modulation
256-QAM
Design
Housing material
Aluminum
Reset button
Y
LED indicators
Status,Signal strength
Internal
N
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Weight & dimensions
Width
143 mm
Depth
48 mm
Height
247 mm
Weight
865 g
Packaging data
AC adapter included
Y
Mounting kit
Y
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
USB connector type
USB Type-A
Power
Power over Ethernet (PoE)
Y
Input voltage
8 - 30 V
Power consumption (max)
21 W
Performance
Chipset
QCA9882-BR4A-R
Built-in processor
Y
Processor model
Qualcomm Atheros QCA9557
Processor frequency
720 MHz
Internal memory
128 MB
Other features
I/O ports
SFP
Wireless standard
802.11a/n/ac
